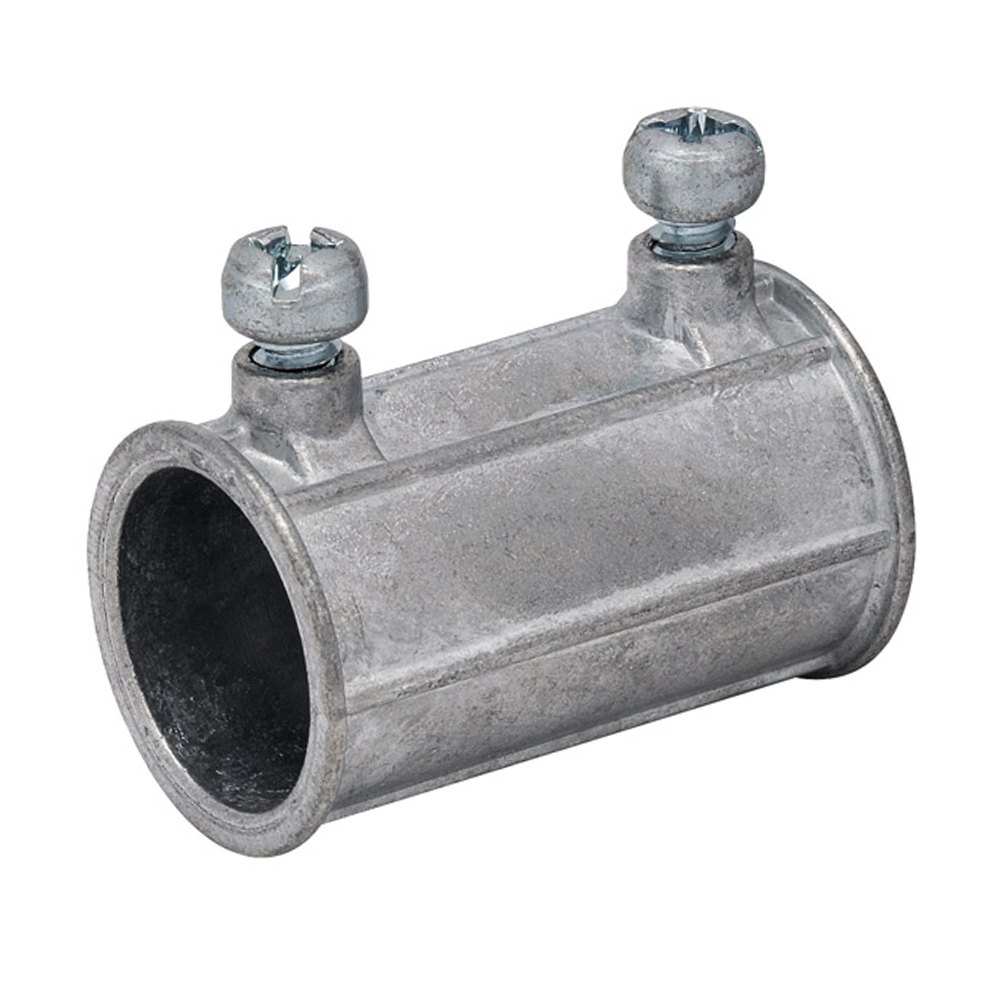

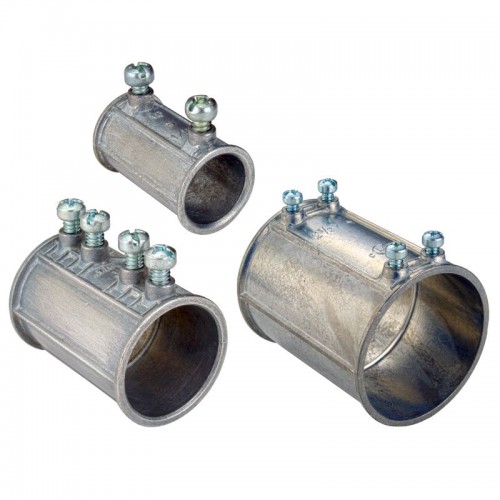

EMT Set Screw Couplings-Zinc
TYPE: Set Screw
MATERIAL: Zinc Die Cast
Used to couple EMT conduit to EMT conduit.
Sizes 2-1/2" - 4" are cULus listed for use with EMT, RIGID, and IMC conduit.
For use in dry locations.
Concrete-tight when taped.
For Canada: concrete-tight.
Staked combination head set screws applicable with Phillips, Slotted or Square-Recess screwdrivers.
Sizes 1/2" - 1" include 2 set screws.
Sizes 1-1/4" - 4" include 4 set screws.

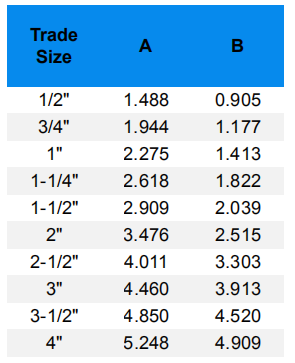

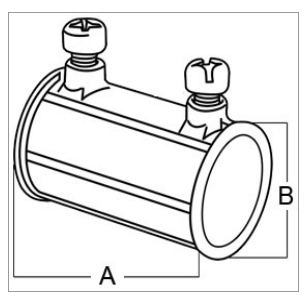

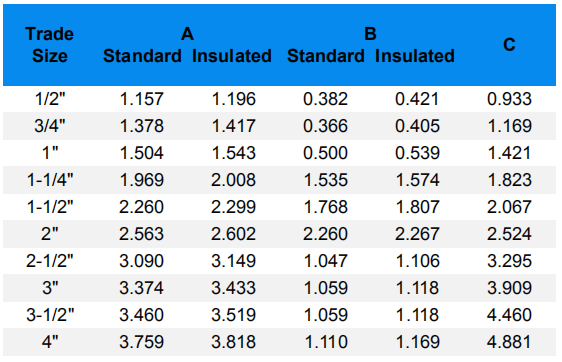

NOMINAL DIMENSIONS (inches):
