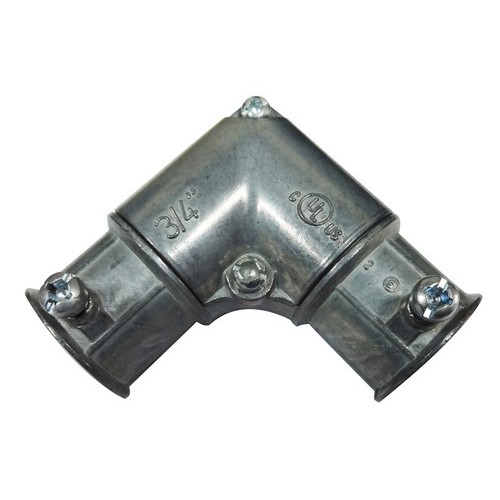

Inside Corner EMT Pull Elbows, Set Screw-Zinc

Inside Corner EMT Pull Elbows, Set Screw-Zinc

TYPE:  Pull, 90°, Set Screw (EMT) to Set Screw (EMT)

MATERIAL:  Zinc Die Cast with Vibratory Finish

APPLICATIONS:

• Used to join EMT conduit to EMT conduit together on a 90° inside corner where space is tight and limited and bending conduit is not feasible.
• For use in dry locations.
• Concrete tight when taped.
• For Canada: concrete tight.

FEATURES:

• With removable cover and screws.
• Removable cover promotes easy wire pulling.
• (2) Pre-Set/Staked combination head set screw and (2) cover screws applicable with Phillips, Slotted, and Square-Recess screwdrivers.

COMPLIANCE:

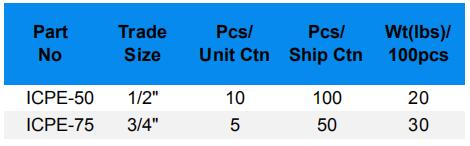

  PRODUCT INFORMATION:

  NOMINAL DIMENSIONS (inches):
