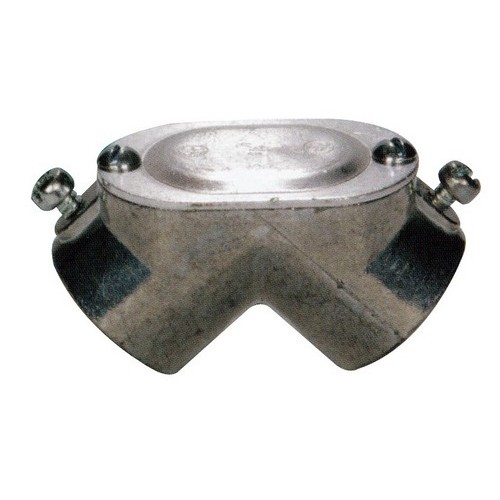

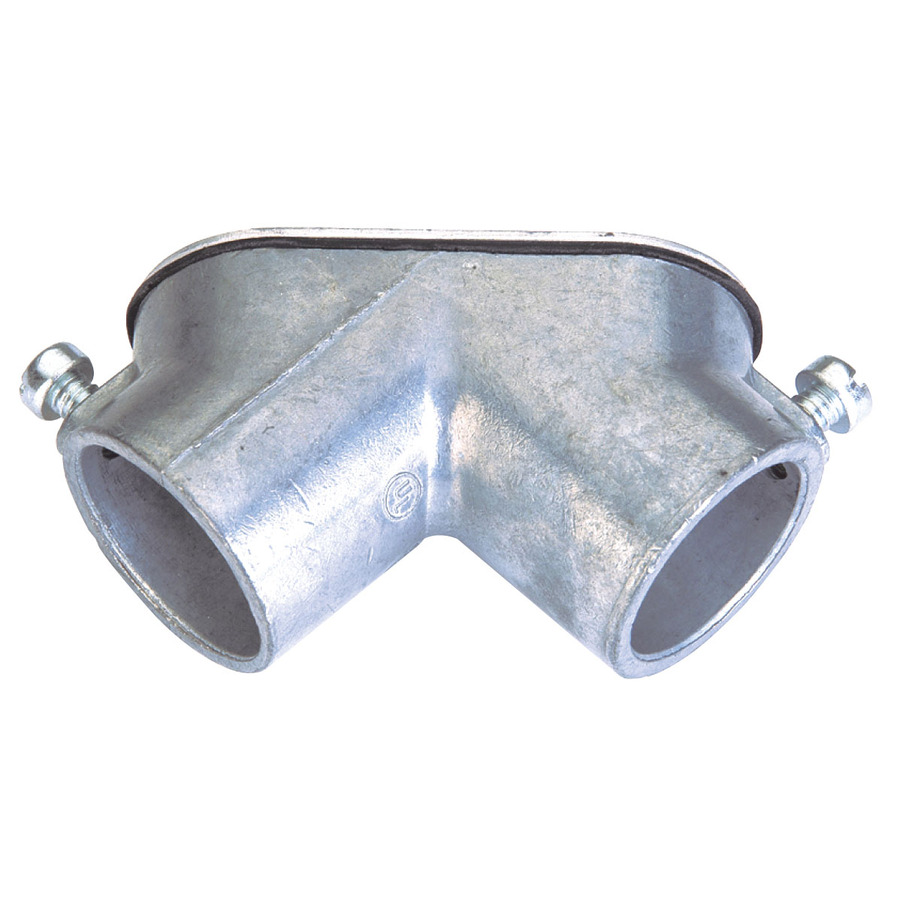

90° Pull Elbows, Set Screw, EMT to EMT-Zinc
TYPE: Pull, 90°, Set Screw to Set Screw, with Cover & Gasket
Zinc Die Cast Body with Vibratory Finish
Used to couple EMT conduit to EMT conduit to create a 90° turn when bending conduit is not feasible.
For use in dry locations.
Zinc Die Cast locknut, Aluminum cover, Neoprene gasket, and (2) Slotted cover screws.
Removable cover promotes easy wire pulling.
(2) combination head set screws applicable with Phillips, Slotted or Square-Recess screwdrivers.

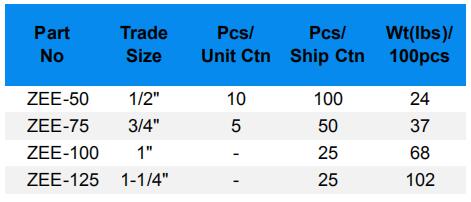

NOMINAL DIMENSIONS (inches):
