ZINC DIE-CAST EMT CONNECTORS SET-SCREW TYPE

  • TYPE: Set Screw
  • MATERIAL: Zinc Die Cast
  • FINISH: Vibratory
  • Product description:ZINC DIE-CAST EMT CONNECTORS SET-SCREW TYPE
  • INQUIRY

ZINC DIE-CAST EMT CONNECTORS SET-SCREW TYPE

Description

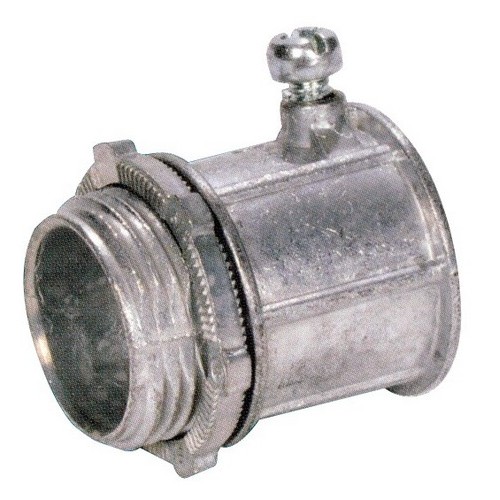

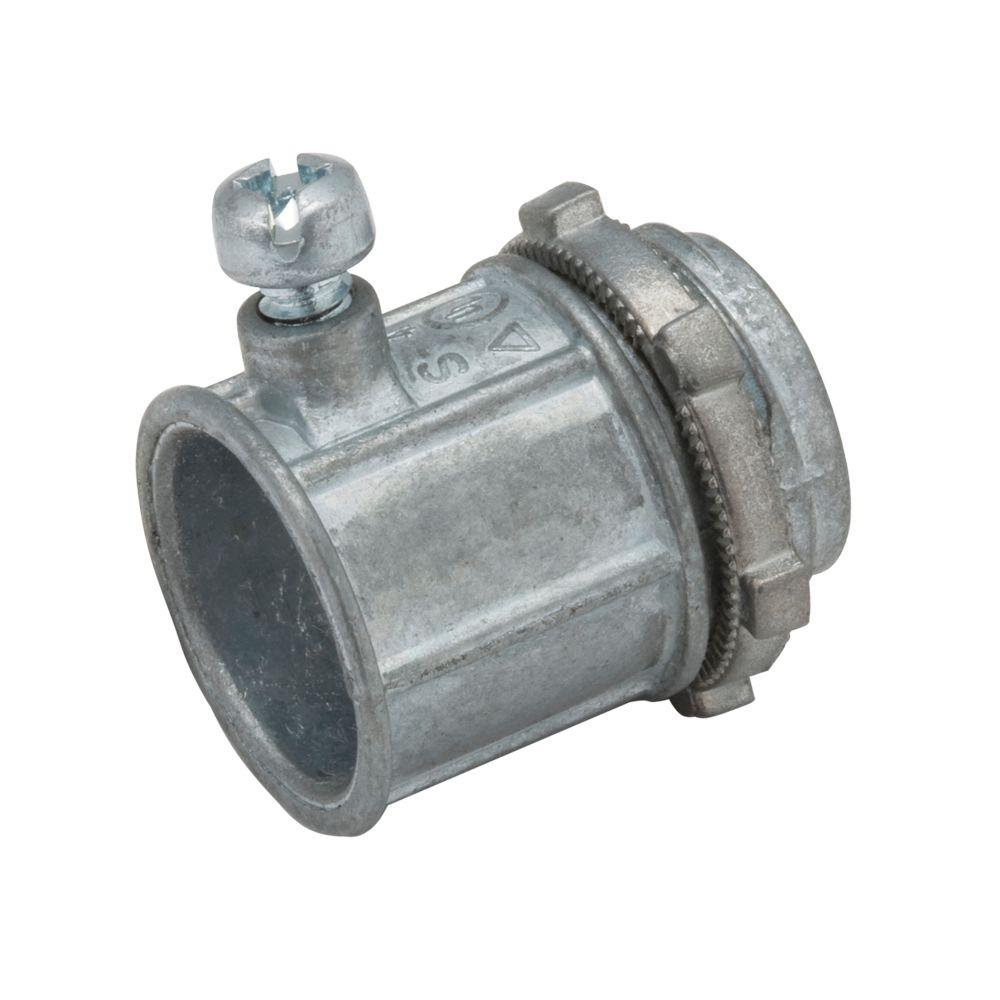

EMT Set Screw Connectors-ZInc

TYPE: Set Screw, with or with Insulated Throat Liner

MATERIAL: Zinc Die Cast

FINSIH: Finish


APPLICATIONS:

  • Used to connect EMT conduit to steel outlet boxes, metal enclosures, or load centers.
  • Sizes 2-1/2"-4" are cULus listed for use with EMT, RIGID, and IMC condui.t
  • For use in dry locations.
  • Concrete-tight when taped.


FEATURES:

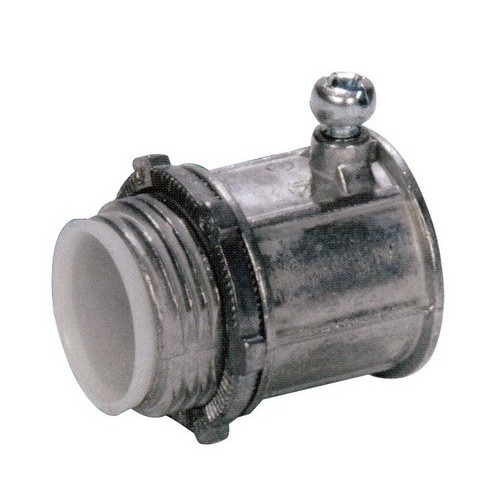

  • Available with or without 105° C insulated throat liner.
  • Male hub threads - NPSM.
  • Zinc Die Cast locknut, staked combination head set screws applicable with Phillips, Slotted or Square-Recess screwdrivers Slotted or Square-Recess screwdrivers.

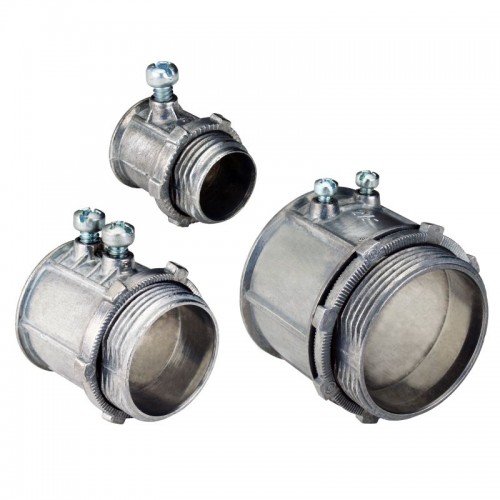

  • Sizes 1/2" - 2" include (1) set screw.
  • Sizes 2-1/2" - 4" include (2) set screw.


COMPLIANCE:


Download:

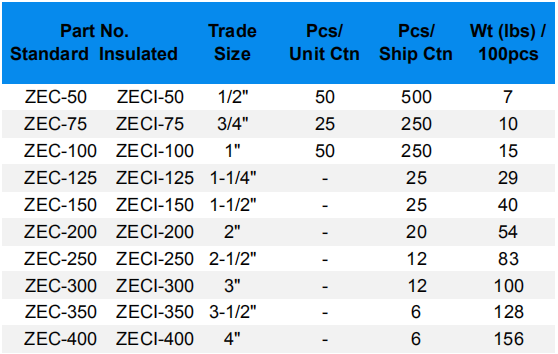

       PRODUCT INFORMATION:

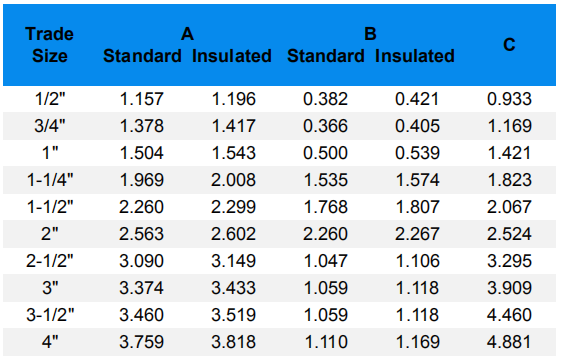

       NOMINAL DIMENSIONS (Inches):
