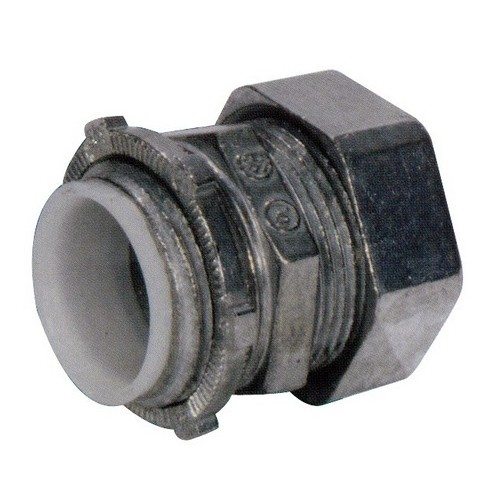

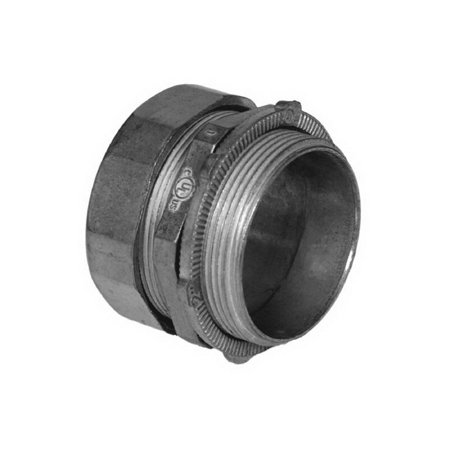

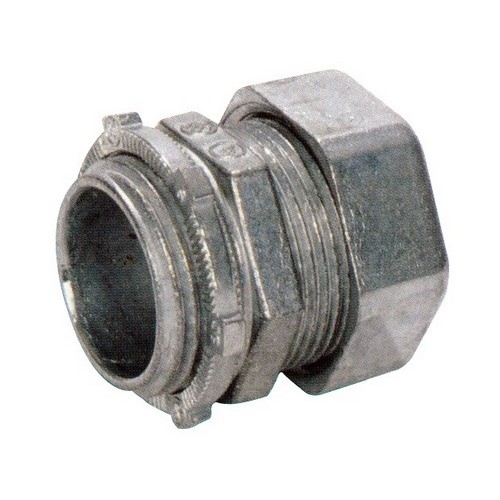

EMT Compression Connectors-Zinc

EMT Compression Connectors-Zinc

TYPE:  Compression

MATERIAL:  Zinc Die Cast

FINISH:  Vibratory

APPLICATIONS:

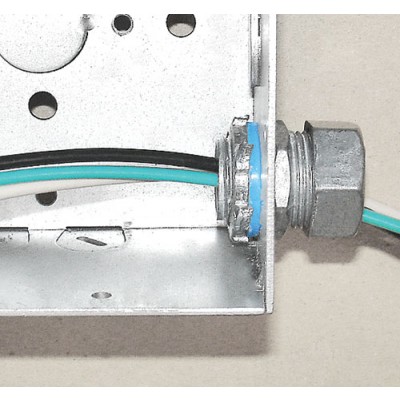

• Used to connect EMT conduit to steel outlet boxes, metal enclosures, or load centers.
• Sizes 2-1/2" - 4" are cULus listed for use with EMT, RIGID, and IMC conduit
• For use in dry locations.

• For Canada: Size 1/2" - 4" are cUL listed rain tight, and may used for wet and dry locations.
• Concrete-tight.


FEATURES:

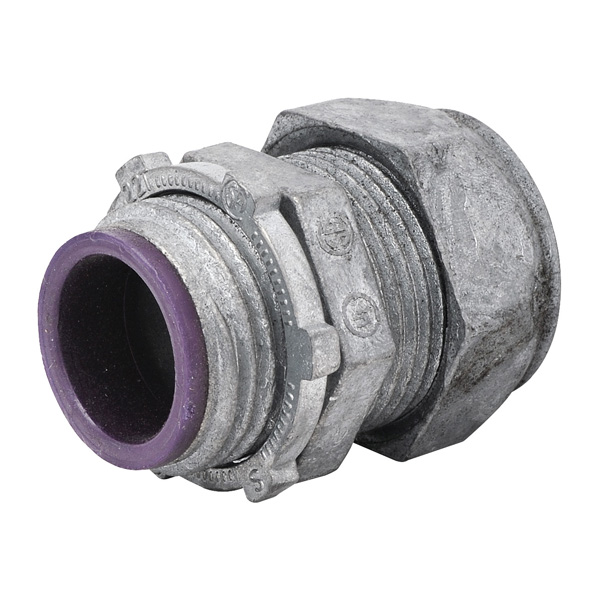

• Available with or without 105° C rated insulated throat liner.
• Hex nut for wrench installation and tightening.
• Zinc Die Cast locknut.

COMPLIANCE:

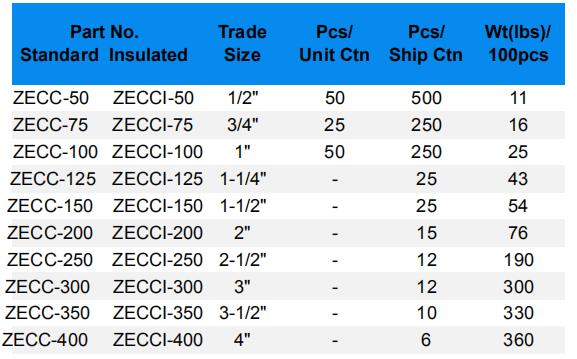

   PRODUCT INFORMATION:

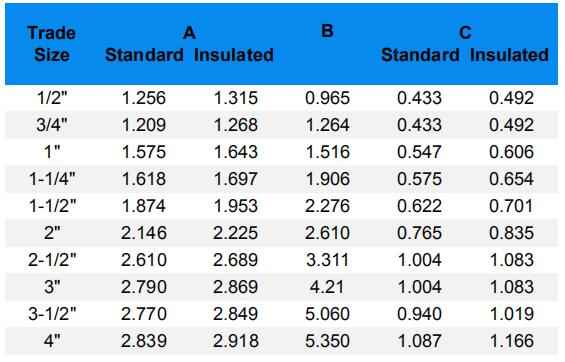

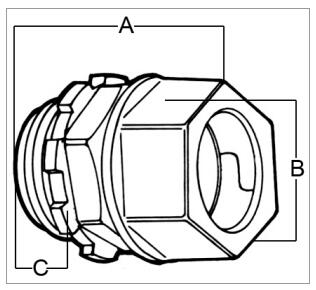

 NOMINAL DIMENSIONS (inches):
