90° Pull Elbows, Set Screw, EMT to Box-Zinc - 副本

TYPE: Pull, 90°, Set Screw, EMT to Box with Cover & Gasket
MATERIAL: Zinc Die Cast Body with Vibratory Finish Aluminum Cover Neoprene Gasket
Product description：90° Pull Elbows, Set Screw, EMT to Box-Zinc
INQUIRY

Description

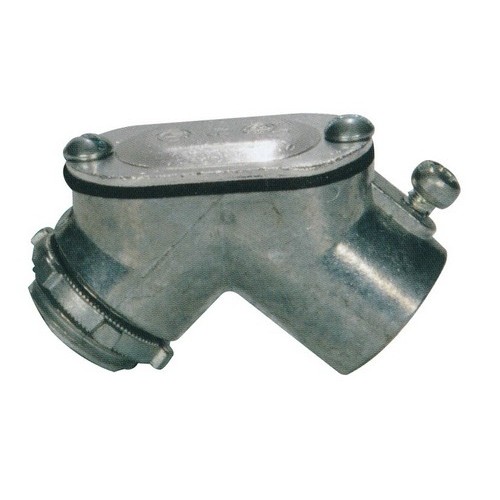

90° Pull Elbows, Set Screw, EMT to Box-Zinc
TYPE: Pull, 90°, Set Screw, EMT to Box with Cover & Gasket

MATERIAL:

Zinc Die Cast Body with Vibratory Finish
Aluminum Cover
Neoprene Gasket

APPLICATIONS:

Used to connect EMT conduit to a box or enclosure to create a 90° turn when bending conduit is not feasible.
For use in dry locations.

FEATURES:

Zinc Die Cast locknut, Aluminum cover, Neoprene gasket, and (2) Slotted cover screws.
Removable cover promotes easy wire pulling.
(1) combination head set screw applicable with Phillips, Slotted or Square-Recess screwdrivers.

COMPLIANCE:
