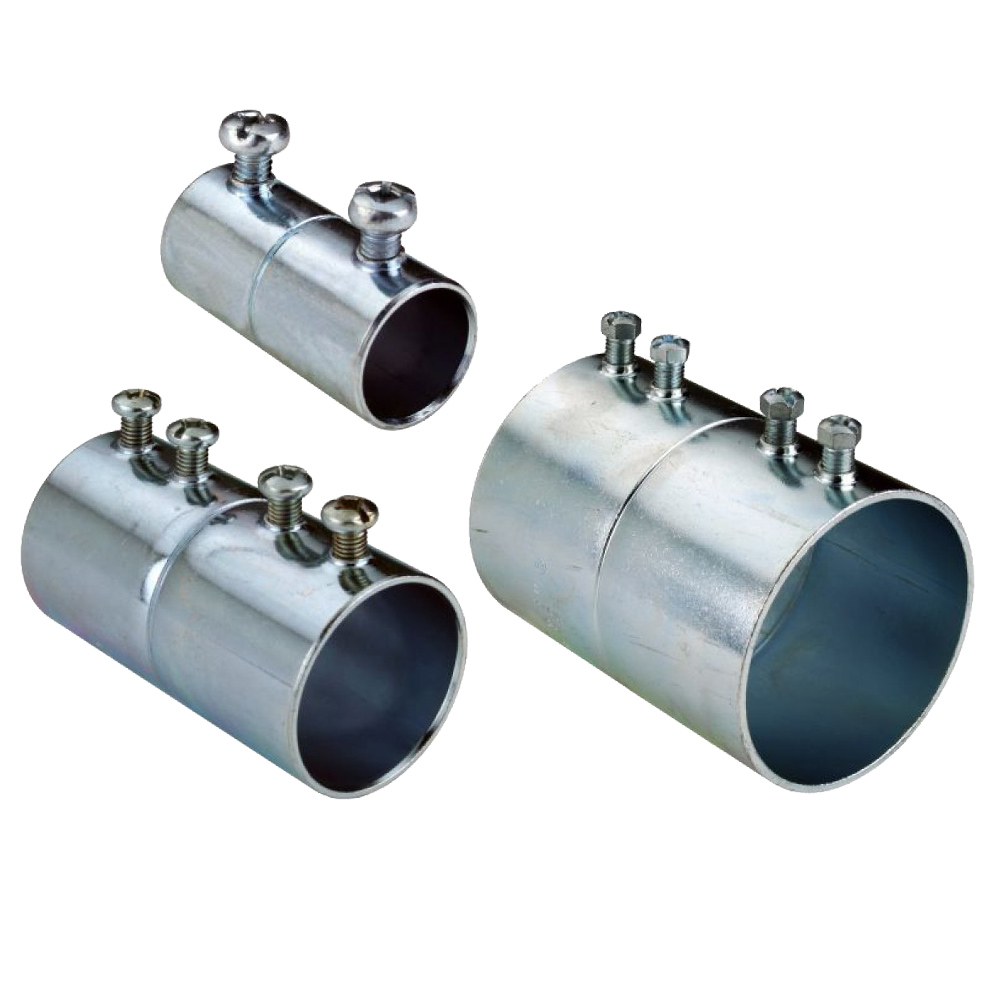

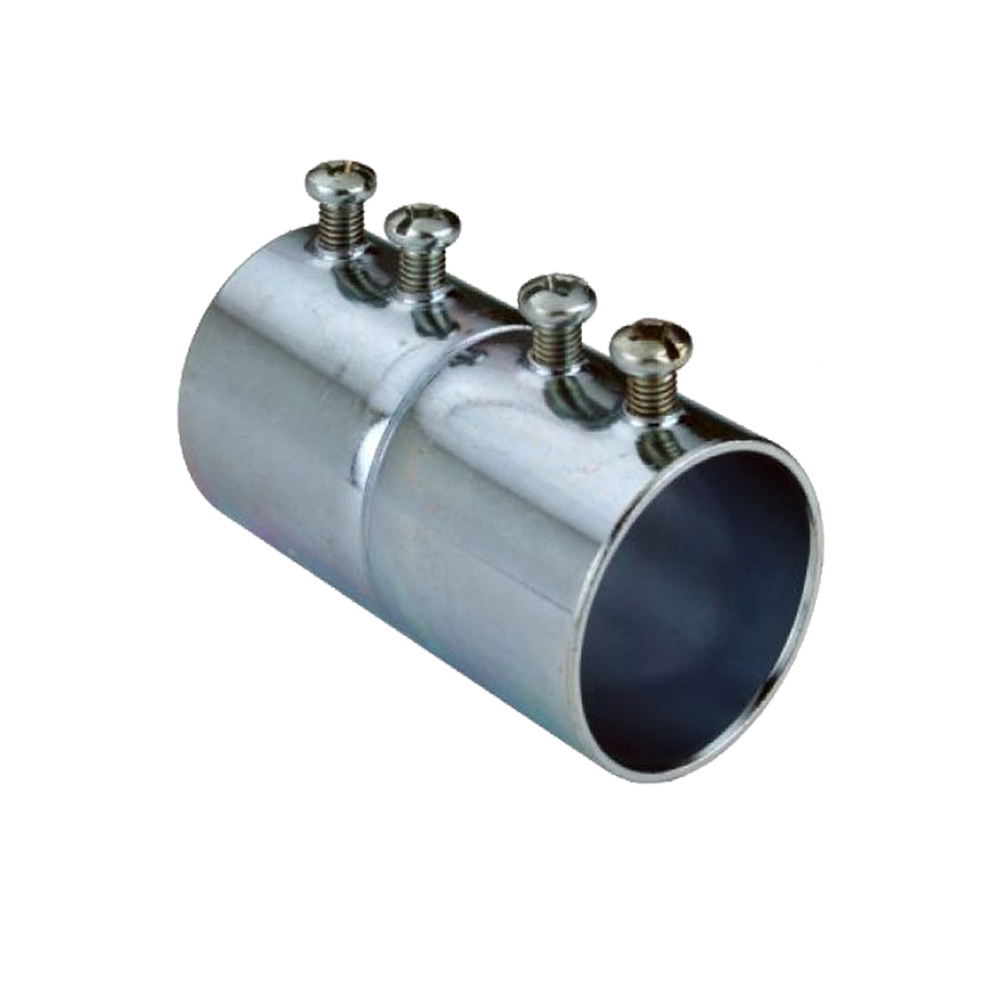

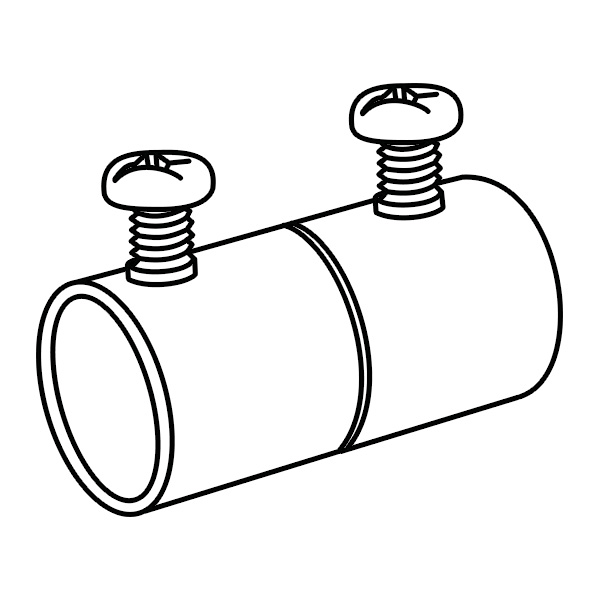

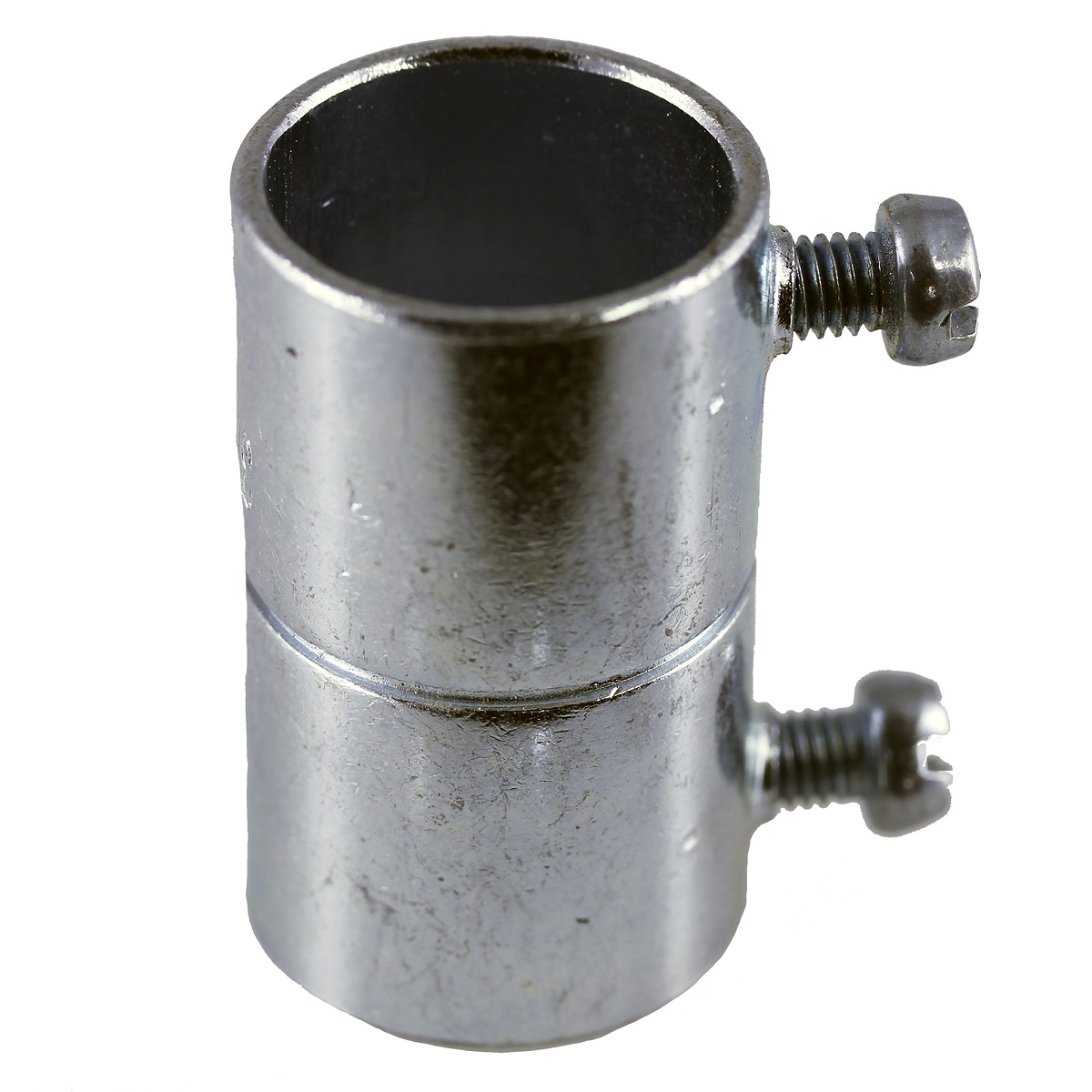

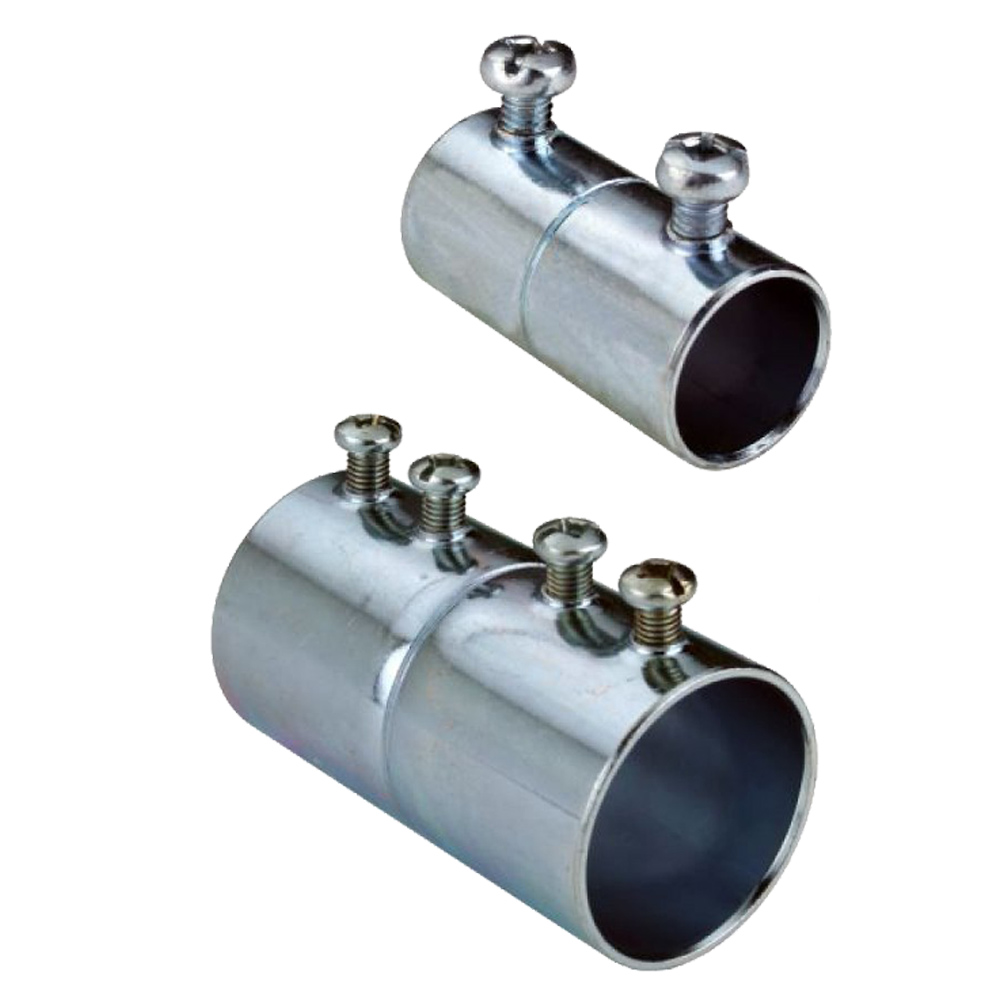

Steel Set Screw EMT Coupling

Steel Set Screw EMT Coupling

TYPE: Set Screw

MATERIAL: Steel

FINISH: Zinc Electro Plated

APPLICATIONS:

• Used to couple EMT conduit to EMT conduit RIGID and IMC conduit.
• Sizes 2-1/2" - 4" are cULus listed for use with EMT, RIGID, and IMC conduit.
• For use in dry locations.
• Concrete-tight when taped.
• For Canada: concrete-tight.


FEATURES:

• Sizes 1/2" - 2" include (2) staked combination head set screws applicable with Phillips, Slotted, and Square-Recess screwdrivers.
• Sizes 1-1/4" - 2" include (4) staked combination head set screws applicable with Phillips, Slotted, and Square-Recess screwdrivers.
• Sizes 2-1/2" - 4" include (4) hex bolt head set screws applicable with Phillips, Slotted, and Square-Recess screwdrivers or wrench installation and tightening.

COMPLIANCE:
